SPECIFICATIONS

product description

1.1 This product is a handheld wireless device with a rated voltage of 11.1V.

1.2 This product has three functions: vacuuming, blowing/inflating, and exhausting.

1.3 The filter adopts a high-efficiency air filter that can be cleaned.

1.4 The motor is a 11.1V high-speed brushless motor.

1.5 Anti blocking rotation design and over temperature warning.

1.6LOGO breathing light.

1.7 Charging display

Key component specifications (see BOM, relevant engineering specifications, part inspection and assembly precautions)

2.1 Fan Blades Fully Enclosed Turbofan Blades

2.2 Shell Material ABS

2.4 Battery 7500mAh(18650 * 3 * 2500mAh)11.1V

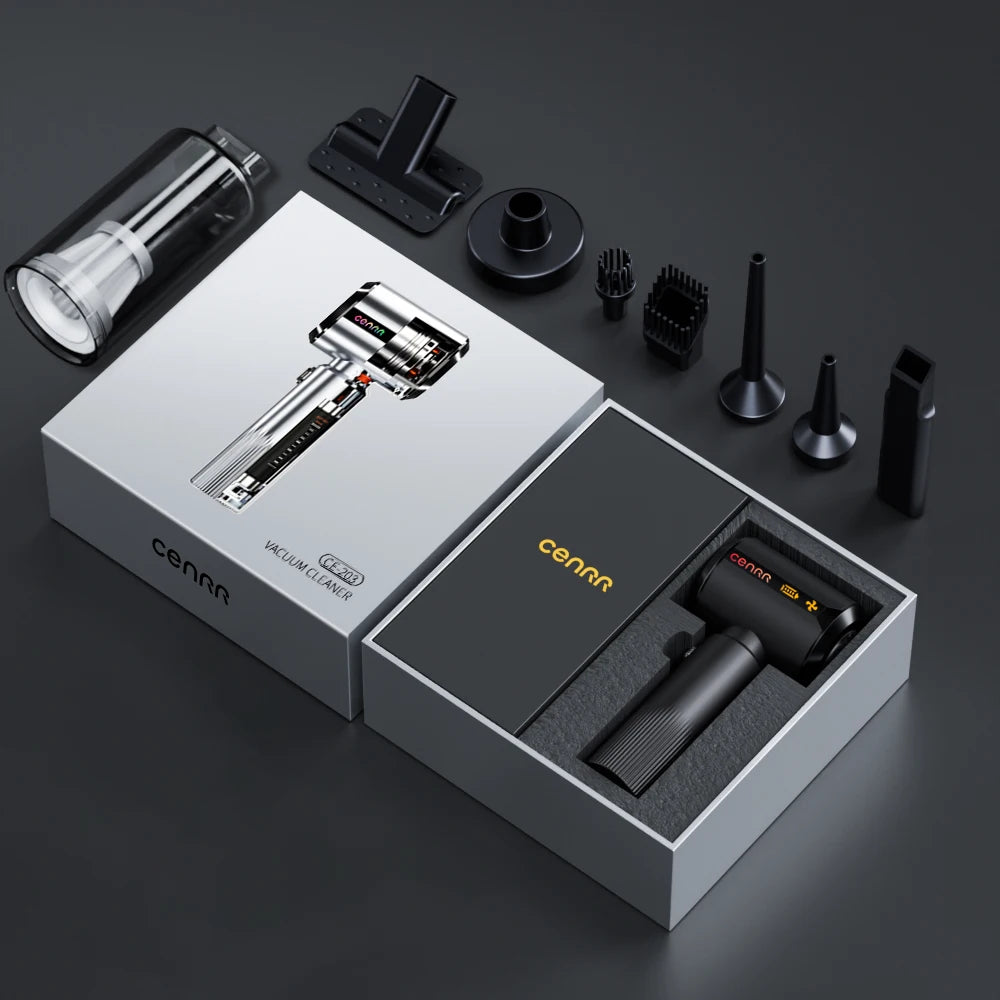

2.5 Accessories brush, flat tube, large nozzle, USB charging cable (three inflatable accessories), long pole, long pole brush (optional: HEPA, easy to open dust cup, bag)

2.6 Weight 680 grams (bare machine)

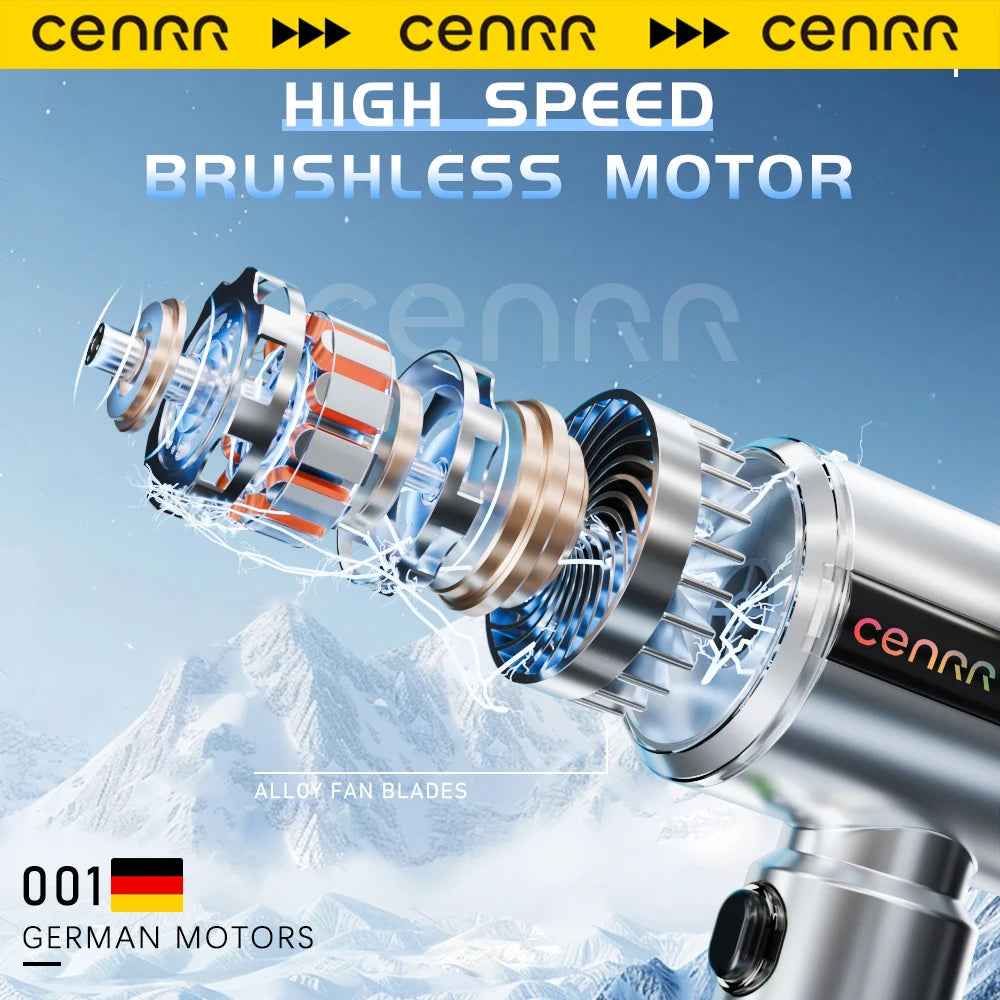

2.7 Motor Specifications 45 Brushless Motor 130000 RPM

2.8 Switch between high, medium, and low gears (press for 3 seconds to open)

2.9 Charging cable Type-c 5V 2A

Product parameters and performance

3.1 Rated voltage: DC11.1V

3.2 Rated power: 120W

3.3 Dust collection cup capacity 0.4L

3.3 Noise: The noise level is about 80dB at a distance of 1m

3.4 High suction force of 18KPa, low suction force of 8KPa at 14KPa

3.5 Maximum blowing volume 680L/min

3.6 Maximum inhalation volume 680L/min

3.7 Inflation pressure 18KPa high

3.8 Exhaust pressure 18KPa high

3.9 Fast charging time 2 hours
